Información Básica.
Descripción de Producto

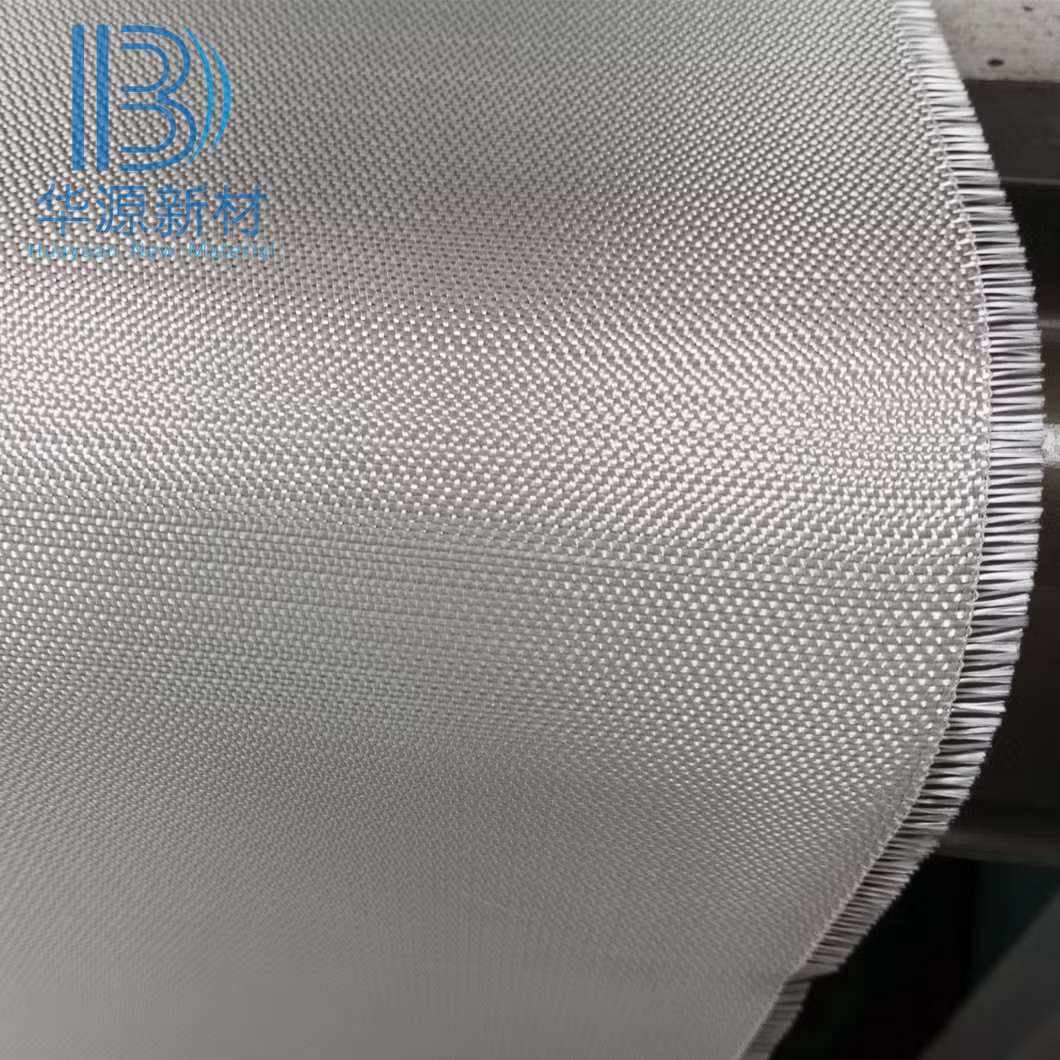

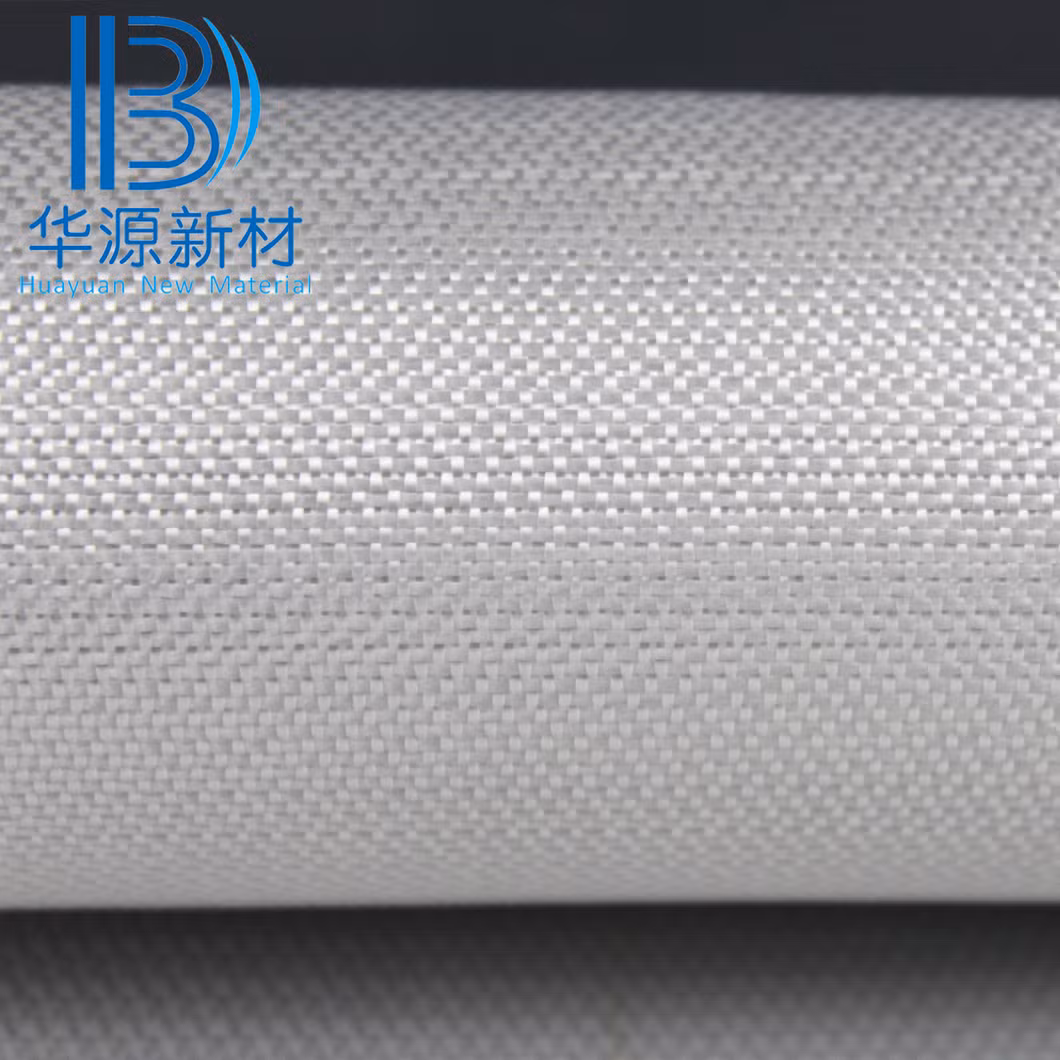

| Plain fabric / Twill fabric is industry technology textile of fiberglass. It's made of fiberglass yarns from Tank-furnace. Features: electric -insulation, thermal-insulation and fire-resistance,fire-proof, corrosion -resistance, weather resistance, high strength, high modulus. Applications: Twill fabric mainly used for fire blanket, welding mat, shipyard, reinforce, Silicone/PU/PTFE coating, fire protection, thermal insulation, pipeline wrapping or aluminium foil lamination area,coating, lamination, smoke curtains, constructions, epoxy reinforcement |
| Type | 3732-420-153 | ||
| Warp | 140tex | Weft | 140tex |
| Density | 20x10 | Thickness | 0.42±0.03mm |
| Warp tensile strength | ≥2100N/Inch | ||
| Latitudinal strength | ≥1300N/inch | ||
| Weight | 420±13g/m2 | Roll length | 400m |
| Width | 1020-2600 | ||
| Remarks | Desizing service available | ||
| Industrial Fabric Series | ||||||||||
| Type | Description | Weave | Warp Yarn (tex) | Weft Yarn (tex) | Warp Density (ends/cm) | Weft Density (ends/cm) | Weight (g/m2) | Glass type | Width (mm) | Roll Length (m) |
| Fiberglass Fabric | 3732A-430 | Twill | 136 | 136 | 20 | 12 | 430 | E-glass | 1020-2500 | 400 |
| 3732D-420 | Twill | 140 | EDR13-140 | 20 | 10 | 420 | E-glass | 1020-2500 | 400 | |
| 3784-830 | Satin Weave | 268 | EDR14-350 | 18 | 10 | 830 | E-glass | 1000-1020 | 100 | |
| 3784-730 | Satin Weave | EC13-268 | EDR14-350 | 18.4 | 7 | 730 | E-glass | 1000-1020 | 225 | |
| CW260 | Plain | 140 | 134 | 12 | 8 | 260 | C-glass | 1000-2500 | 600 | |
| 7628-EW210 | Plain | 68 | 68 | 17 | 13 | 210 | E-glass | 1000-1550 | 1400 | |
| 7628F | Plain | EC11-68 *Z 28 | EC11-68 *Z 28 | 17.1 | 13 | 210± 4 | E-glass | 1270+10 | 2500 | |
| EW220 | Plain | 68 | 100 Direct roving | 17 | 13 | 210 | E-glass | 1000-1550 | 1400 | |
| EW140 | Plain | 68 | 68 | 12 | 9 | 140 | E-glass | 1000-2500 | 600 | |
| CW140 | Plain | 50 | 50 | 17 | 11 | 140 | C-glass | 1000-2500 | 600 | |
Huayuan focuses on the deep processing of the subdivided field of glass fiber new materials and the supporting of the upstream industrial chain . It is a famous manufacturer and service provider of glass fiber green building materials and composite materials in the field .Our products include glass fiber yarn , alkali resistant fiberglass mesh , E-grade fabric, industrial fabric, aluminum foil coated fiberglass fabric , Drywall joint tape , grinding wheel mesh , and other related fiberglass fabrics.
Our company was certified by ISO9001 , SO45001 , ISO14001 and achieved high-tech enterprise certification , and safety production standardization certification. our related products have passed the EU RoHS standard and REACH standard . In addition , the company has been rated as a demonstration enterprise for transformation building materials industry , Jiangxi Province technology-based small and medium-sized enterprise, Jiangxi Province specialized and new enterprise , Jiangxi Province observing contract and valuing credit enterprise, Jiangxi Province Gazelle enterprise and Jiangxi Province famous brand products.
In June , 2021 , Huayuan invested in a new glass fiber tank furnace and supporting products project in Jiujiang City, Jiangxi Province,there will have 3 phases of Huayuan's Jiujiang fiberglass tank furnace. After the three-phase project s fully completed, it is expected to achieve an annual output of 380 , 000 tons of glass fiber yarn and roving , 600 million square meters of fiberglass mesh and 100 million square meters of industrial fabric production capacity. And now one of the annual output of 80,000 tons of glass fiber yarn Project has been put into production successfully.
Jiangxi Huayuan New Material Co, Ltd. takes "let every customer win more trust" as the enterprise mission, adhering to the"create value for customers" business philosophy, with stable product quality, excellent industry reputation by the majority of customers, the products are sold to the Pearl River Delta,Yangtze River Delta and other parts of the country and the Asia-pacific, the Middle East, Europe and the United States and other countries and regions
1. Could you provide free sample?
Yes, we can provide free sample in A4 size, but You will be responsible for the express freight.
2. How is your Payment Term?
Generally, our payment term is T/T 30% in advance and the balance 70% against the copy of B/L.
Other payment term can be negotiated for regular clients.
3. Do you have a discount?
It depends on your procurement quantity.
If your order is big enough, we will consider to give you a discount.
4. lead time:
If the product you order is our current product, the delivery time is usually 15-20 days;
If customization is required, please confirm the lead time again.
5. Are you factory?
We are manufacturers; We are one of the main producers of fiberglass in China.
We have 5 factories and our products cover fiberglass yarn and various fiberglass fabrics,Mesh.
We have a complete upstream and downstream industrial chain factory.
All our factory is 100% owned.
6, If there is a problem with the product, how will you handle it?
Firstly, our products undergo strict inspection before leaving the factory.
Secondly, our company has rich export experience, and we have dedicated professional operators for packaging and loading.
Thirdly, Anyway, if it is our responsibility, we will be responsible for replenish new products for any quality issues, packaging issues, or loading issues.
